4K HDMI fiber extender (300Meter, minitype)

China 4K HDMI fiber extender (300Meter, minitype) supplier
4K HDMI fiber extender (300Meter, minitype) supplier 4K HDMI fiber extender (300Meter, minitype) supplier

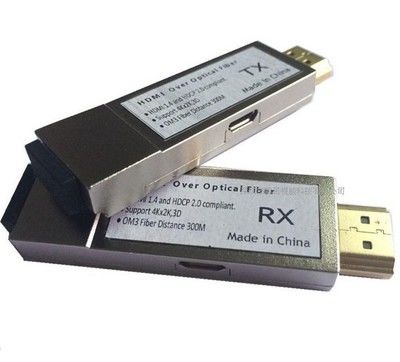

Large Image :  4K HDMI fiber extender (300Meter, minitype)

Product Details:

Place of Origin: China
Brand Name: FiberLinker
Model Number: FL3101K3-T/R

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: 5 days
Payment Terms: TT, PayPal, Wester Union
Supply Ability: 1000pcs
Contact Now
Detailed Product Description

INTRODUCTION
  4K resotuion HDMI to fiber converter with two fibers supports transmission of an uncompressed lossless HDMI 1.4a . Signal over multimode optical fiber at 850nm, up to distances at 300m,at a resolution of 4Kx2K. Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers. Receiver converts the serial data back to an HDMI signal .

FEATURES
HDMI 1.4a
Support 4Kx2Kx30 Resolution
Support 3D.
Support HDCP
DDC CEC HDP Signal Support
Support up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber
lntegrated USB Connector For Power
Hot-Pluggable
850nm VCSEL and PIN Photo detector
2-Wire Interface
 2.0          SPECIFICATIONS

Signal Input/Output



Input/Output port of transmitter

HDMI Female x1



Fiber Female x1



Mini USB Female x1





Input/Output port of receiver

HDMI Female x1



Fiber Female x1



Mini USB Female x1





Operating Frequency



Vertical Frequency Range

50/60HZ

Video Amplifier Bandwidth

Max up to 10.3Gbps

Resolutions(HDTV)



Interlaced(50&60HZ)

480i ,576i,720i,1080i,4kx2k for HDMI

Progressive(50&60HZ)

480P,576P,720p,1080P,4kx2k for HDMI

Mechanical



Size(L-W-H)

90X25X20mm

Weight(Net)

80g

Environmental



Operating Temperature

0 °C-70°C

Operation Humidity

10%-85%RH(no condensation)

Storage Temperature

-10 °C+80°C

Storage Humidity

5%-90%RH(no condensation)

Power Requirement



External Power Supply

USB POWER

Power consumption(Max)

1.4W

Accessories Adapter



User manual

English Version

 4K resolution mini HDMI optical transceiver
 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1)     Main unit No.1 Transmitter
2)     Main unit No.2 Receiver
3)     Two pieces of USB lines
4)     User’s Manual
