1.Overview

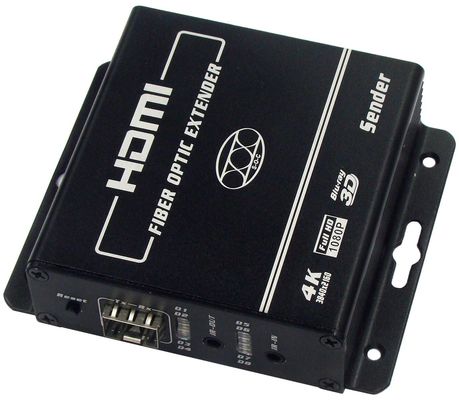

Fiber Linker 4K HDMI KVM Fiber Optic Extenders can extend the HDMI signal to a long distance with single fiber. Support HDTV video resolutions up to 4096X2160@30Hz. The HDMI Fiber Optic Extender also transmits audio and USB KVM It is used widely by the project of video conference, Multimedia, remote teaching, video wall, and other digital video transmission.
2.Features
1-ch 1.4 HDMI and 3D
USB for keyboard and mouse
optional IR, RS232
10G rate
Support HDCP, EDID(dual fiber).
Support 7.1 PCM setero audio
10-bit digital video encoding and uncompressed transmission technology
0-60KM transmission distance optional
Support DVI transmission
3. Applications
Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
Long-haul Signal Transport
TV station/video conference
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Small corporate campus video links
Building to Building video conference calling
4. Ordering Information
HDMI KVM Fiber Optic Extender with USB and 4K resolution
FL3101KVM: 1-ch HDMI with embedded audio, USB for keyboard and mouse, single fiber, single mode, 2KM standard, stand alone.
Note: dual fiber supports HDCP, EDID, multimode could transmit 300M, single mode could be upto 60KM.
5. Specifications
| Main Feature | |
| 1,Support resolution(Max): 4096X2160@30Hz | |
| 2 Support HDMI, EDID | |
| 3,Support HDMI1.4 and 3D | |
| 4,Support 1-ch HDMI, USD | |
| 5,LC optical connector | |
| 6,Single fiber, single mode | |
| 7,HDMI transmission cable is up to 15m (without fiber transceiver) | |
| Video | |
| PC Max resolution | 4096X2160@30Hz |
| HD-DVD input max resolution | 720p/1080i/1080p |
| Input/output TDMS | 10Gpbs |
| Input/output TDMS power level | 1.2volts p-p |
| Input DDC level | 5volts p-p (TTL) |
| Power Supply | |
| Power Consumption | 5W(max.) |
| Power Voltage | 5VDC |
| Optic | |
| Optic Fiber | Complied with 1000BASE_LX of IEEE802.3z |
| Wavelength | 1310nm |
| Output Optical Power | －9.5～－3dBm,average @1310nm |
| Receiver sensitivity | －23dBm,average @1310nm |
| Output Modulation Amplitude | 180μW |
| Input Modulation Amplitude | ≤15μW |
| Relative Speed | -116 DB/Hz |
| Return Loss | ≤10 dB |
| Rate of transmission | 1G Hz～10G Hz |
| Distance | 2KM, Max optional upto 60KM |
| Environment | |
| Working Temperature | -45℃~+70℃ |
| Storage Temperature | -65℃~+80℃ |
| Relative Humidity | 0~95%(non condensing) |
| Dimension | |
| Size | 89*104*28mm |
