8X8 SDI Matrix Switcher

China 8X8 SDI Matrix Switcher supplier
8X8 SDI Matrix Switcher supplier 8X8 SDI Matrix Switcher supplier

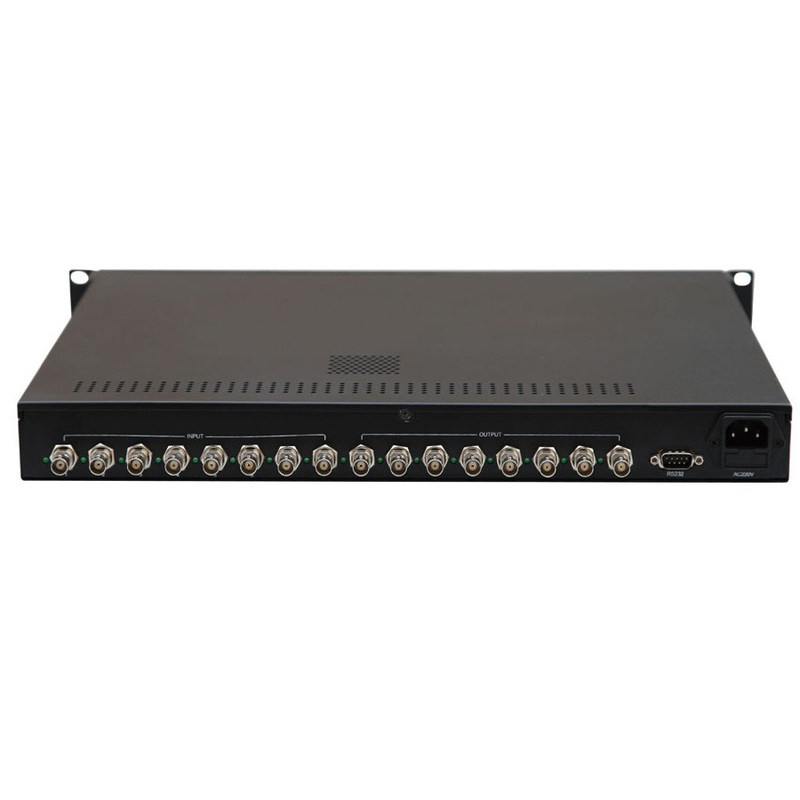

Large Image :  8X8 SDI Matrix Switcher

Product Details:

Place of Origin: China
Brand Name: Fiber Linker
Model Number: FL-SDI-0808

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Carton
Delivery Time: 7 working days
Payment Terms: TT, Westen Union, Paypal
Supply Ability: 50 pcs every month
Contact Now
Detailed Product Description

Introduction



SDI Video Matrix Switcher is a professional matrix switcher of high-performance embedded intelligent control. Our SDI is compatible with ASI which is used widely in broadcasting program transmission. It provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc



Feature

  • Compatible with SMPTE259M/292M/344M/424M , DVB-ASI
  • Support clock recovery
  • Built in self-adaptable equalize
  • Power off self-protection
  • High-quality, high-volume production, high compatibility and stability, and highly cost effective;
  • Front panel LED shows switching status
  • Switching mode: RS-232, panel buttons, IP
  • Rack mount design for easy installation



Technical Specifications



Category SDI Matrix Switcher
SDI Video
Application standard SMPTE424M,SMPTE295M,SMPTE292M,ITU-R BT.601,ITU-R BT.1120
Video format 270Mbps SDI,1.485Gbps HD-SDI & 2.97Gbps 3G-SDI
Data frequency 19Mbps to 2.97Gbps
Range 0.8Vp-p±10%
Rise/fall time <270ps
DC excursion 0v±0.5v
Overshoot <10%
Shift <540ps±10%
Min/max electricity frequency 0.5V to 1.0Vp-p
Max transmission range 3G: 120m. HD: 200m SD:400m(use 75-5,128 professional video line,or 75-5 closed circuit television line, far transmit distance and low cost
Input impedance 75Ω
Return loss <-15dB, DC@1MHz to 1.5 GHz
DC compensation Max ±5mV
Output impedance 75Ω
control interface
Serial control interface RS-232, 9-pin female D-type interface
Baud rate and protocol Baud rate: 9600, data bit:8, stop bit: 1, no parity
IP RJ45 port
Working Environment
Power supply 100VAC~240VAC, 50/60 Hz, international adaptive power
Temperature Storage and operating temperature: -40°~ +70°C
Humidity Storage and operating humidity: 10% ~ 90%
MTBF 60,000 hours

Ording Info

FL-SDI-0808: SDII Matrix Switcher supports 8 input and 8 output
