| Name: | HDMI Matrix Switcher | HDMI: | 4K@60Hz 4:4:4 HDMI2.0 Version |
|---|---|---|---|
| Switching: | Seamless | Channels: | 8 Input And 8 Output |
Description

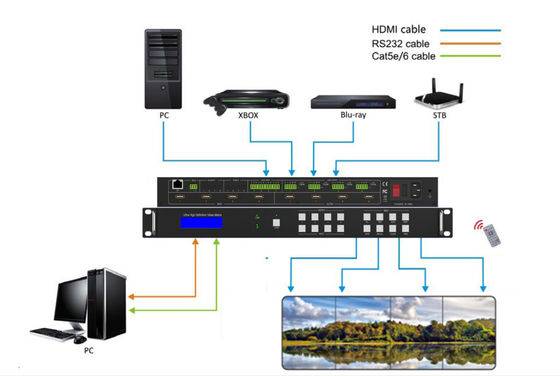

FL4K88H is a high-performance seamless UHD HDMI matrix switcher with 8x HDMI inputs and 8x HDMI outputs. Audio extract or insert can also be enabled on this device. IR matrix routing on this video matrix is followed with video routing. FL4K88H supports one or more video wall with RS232 command
Features
Support HDMI 2.0/HDCP 2.2
Support seamless switching
Support video wall
Support IR matrix
Support HDMI audio extract
Support external LR audio insert on HDMI stream
Support EDID management
HDMI video output resolution up to 3840x2160@60
Front panel,RS232,TCP/IP (LAN 10M/100M) control
Front Panel Control
OUTPUT/INPUT buttons
Press buttons OUTPUT n + INPUT m+ TAKE by sequence, switch matrix input n to output m
·Press button POWER and hold for 5 seconds, to make the matrix enter standby state.
Press button POWER and hold for 1 seconds to power on the matrix
·Press button LOCK more than 2 seconds and less than 6 seconds, to lock or un-lock front buttons. When locked, the Lock LED lighted;
Press button LOCK more than 6 seconds, enter into the input output lock menu, then press IN Or OUTPUT button to toggle the input or output lock status, then press TAKE to set, Press CLEAR to exit.
·Press buttons ALL + INPUT m + TAKE by sequence, to switch input m to all the outputs
·Press button SAVE + OUTPUT n to save current routing scene as scene n. The maximum available scene No. is 8
·Press button RECALL + OUTPUT n to recall routing scene n as current routing
·Press button RES + OUTPUT n + NEXT + TAKE, to change output resolution of OUTPUT Resolution options:
3840x2160@60, 3840x2160@50, 3840x2160@30, 3840x2160@25,1920x1200@60,1920x1080@60, 1920x1080@50, 1600x1200@60,1400x1050@60, 1366x768@60,1360x768@60,1280x1024@60, 1280x768@60,1280x720@60, 1280x720@50, 1024x768@60
·Press buttons EDID + INPUT m + NEXT + TAKE, change the EDID mode of port INPUT m
·EDID option:
Manual, 3840x2160@60, 3840x2160@30, 1920x1200@60,1920x1080@60, 1280x1024@60, 1280x720@60, 1024x768@60
Manual EDID is loaded by PC Tool
