broadcast ASI TS Extender over fiber optic cable with SMPTE LEMO connector

China broadcast ASI  TS Extender over fiber optic cable with SMPTE LEMO connector supplier
broadcast ASI  TS Extender over fiber optic cable with SMPTE LEMO connector supplier broadcast ASI  TS Extender over fiber optic cable with SMPTE LEMO connector supplier

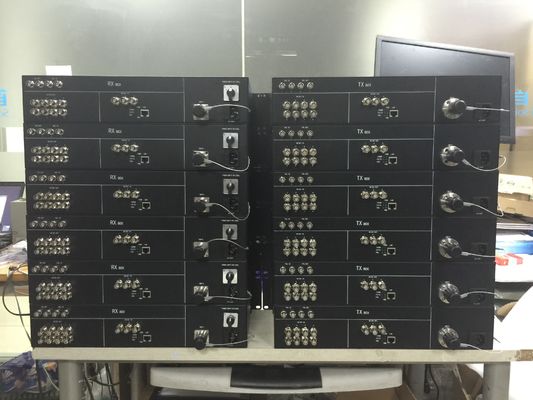

Large Image :  broadcast ASI TS Extender over fiber optic cable with SMPTE LEMO connector

Product Details:

Place of Origin: China
Brand Name: Fiberlinker
Certification: CE FCC
Model Number: FL1113-T/R

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: 5 days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 sets
Contact Now
Detailed Product Description

1. Overview
Fiber Linker’s ASI Extender over Fiber, ASI Fiber Optic Extenders offer the digital transmission of fully uncompressed SD-SDI/ASI (270Mbps) by single fiber overbroadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission.
2. Features
Our ASI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution
3. Applications

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links

4. Ordering Information


FL1113 : 8-ch ASI forward, 3-ch ASI reverse, 2-ch bidirectional analog video, SMPTE Lemo connector, two fibers( single fiber optional), single mode, 20KM, 2U rack mount.

5. Specifications

ASI Input ASI Output
channels 8 forward, 3 reverse Channels 8 forward, 3 reverse
Signal standard SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -1.485Gb/s) Signal level 800mV nominal
Reflection loss >15DB Rise/drop time 200ps nominal
equalization 1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable Reflection loss > 15dB
connector 75Ω BNC Overshoot 10% amplitude
Jitter: < 0.2UI




Optic Others
Channels 2 (1 optional) Transmission distance 20KM
Type single mode Operating temperature -45°C~+50°C
Wavelength CWDM Power 1A@12VDC
Reflection loss > 15dB Average time trouble-free >100000 hours
Connector Lemo Case 2U rack mount
Video Data(optional)
Type PAL/SECAM/NTSC Channels 1-ch reversed data(terminal block)
Channels 2-ch forward, 2-ch reverse Data rate

-+15 dBu



Input level 0.5~2Vpp Connector terminal block
Output level 1Vpp
Bandwidth (-3 dB) 8 MHz
