2-ch ASI Fiber Extender

China 2-ch ASI Fiber Extender supplier

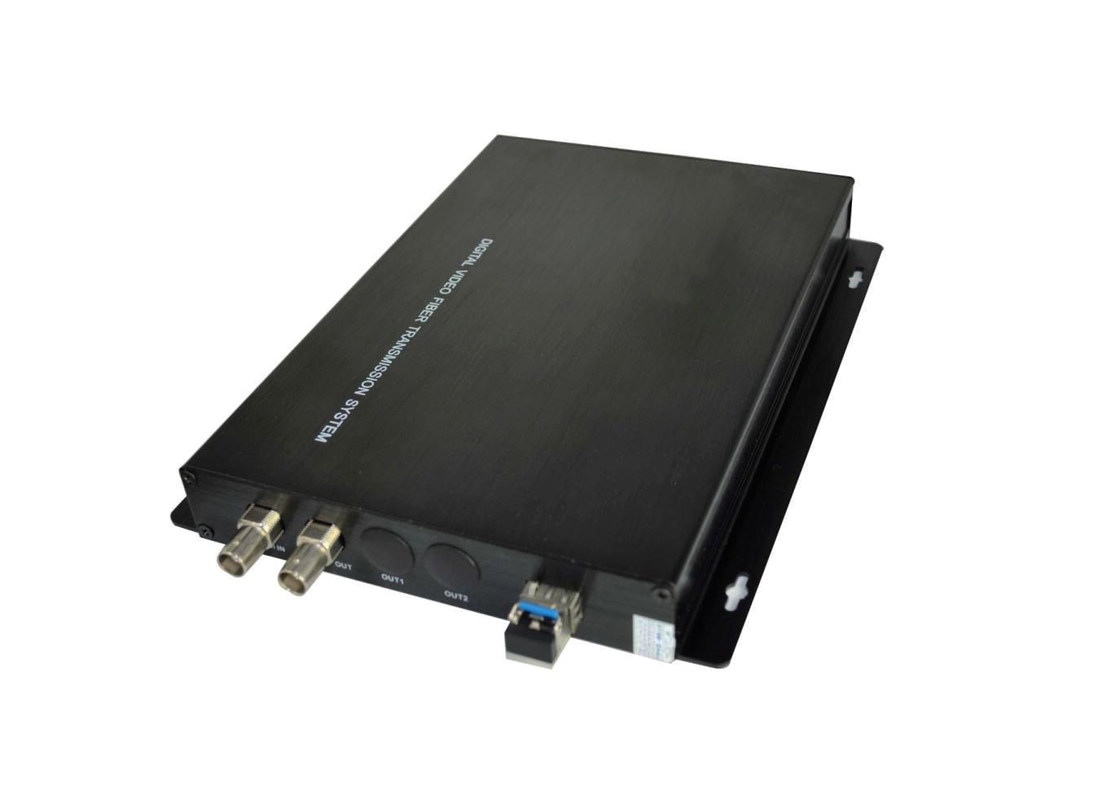

Large Image :  2-ch ASI Fiber Extender

Product Details:

Place of Origin: China
Brand Name: Fiber Linker
Model Number: FLA002(MINI)

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Packaging Details: Cartoon
Delivery Time: 7days
Payment Terms: TT in advance
Contact Now
Detailed Product Description

1.  Overview

Fiber Linker’s ASI  Fiber Extender offer the digital transmission of fully uncompressed SD-SDI/ASI (270Mbps) by single fiber over broadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission.It solves the long distance transmission for digital TV program which is one solution for ASI and TS transmission in broadcasting program.

2. Features

Our ASI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution

3. Specifications

ASI Input

ASI Output

channels

2

Channels

2

Signal standard

M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -270Mb/s)

Signal level

800mV nominal

Reflection loss

>15DB

Rise/drop time

200ps nominal

equalizatio

>350m@270Mbps,Belden 1694Acable

Reflection loss

> 15dB

connector

75Ω BNC

Overshoot

10% amplitude

Jitter: < 0.1UI





Optic

Others

Channels

1

Transmission distance

20KM

Type

single mode (multimode optional)

Operating temperature

-45°C~+50°C

Wavelength

1310nm /1550nm

Power

1A@12VDC

Reflection loss

> 15dB

Average time trouble-free

>100000 hours

Connector

FC/PC (SC/PC optional)

Case

Stand alone( 1U rack mount optional)

4.  Applications

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links

5. Ordering Information

FLA002(MINI) : 2-ch ASI,single fiber, FC, 20KM, stand alone.
