Minitype 4 core fiber cable DVI fiber optical transceiver

China Minitype 4 core fiber cable DVI  fiber optical transceiver supplier
Minitype 4 core fiber cable DVI  fiber optical transceiver supplier Minitype 4 core fiber cable DVI  fiber optical transceiver supplier Minitype 4 core fiber cable DVI  fiber optical transceiver supplier

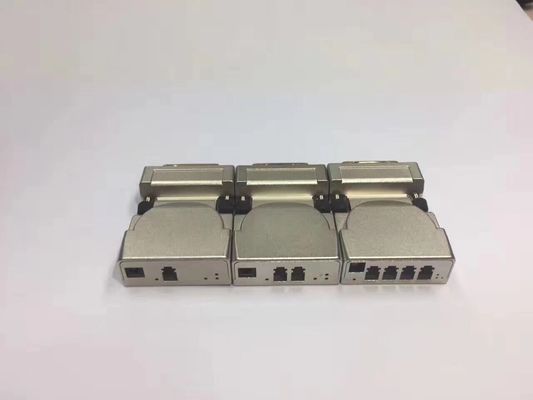

Large Image :  Minitype 4 core fiber cable DVI fiber optical transceiver

Product Details:

Place of Origin: China
Brand Name: Fiberlinker
Certification: CE FCC
Model Number: FL3202M4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: 5 days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 sets
Contact Now
Detailed Product Description
Video: DVI Fiber: 4 Core
Size: Minitype Resolution: 1080P

1.Overview



The Digital Visual Interface is a high-quality, uncompressed data link between a host processor video card and a display peripheral. DVI Optical technology for this transmission stretches the performance beyond the limitations of copper wire.



   DVI Fiber Optical Transceiver consists of transmitter module and receiver module, each of which has 2XLC connectors and a 20-pins DVI–D plug. Users could decide extension length at their discretion by choosing the length of fiber-optic cables with LC ferrules at the ends. It offers graphic TMDS signals to be extensible up to the limits of modal bandwidth of selected multi-mode glass fibers, or single mode fiber. A transmitter has 4 Laser inside and a receiver has 4 Pin-PDs inside. and each transmitter or Receiver also has a WDM filter inside, which combine the 1310nm laser and 1550nm laser into one fiber. it has a capability to transmit UXGA (1600X1200) graphic signals with 60Hz refresh rate. At such data bandwidth, this module can extend up to 1,640 feet (500 meters) much over the limits of copper wire extension, without any distribution amplifier or repeater.



2.Features

  • Extends all VESA resolution up to WUXGA (1,920 X 1,200) 60Hz DVI data up to 1,500 meters (4,920 feet).
  • Applicable to both single-mode and multi-mode fibers.
  • Up to 500m with 4 core LC  fibers.
  • Offers self-EDID programming feature, detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection.
  • The modules are compact enough to directly plug to graphic sources and displays by adopting DVI-plugs.
  • Certifies FCC and CE standards for EMI/RFI emission.
  • Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present.

3. Applications

  • Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank
  • Digital FPDs and projectors in conference room and auditorium
  • Kiosk with digital FPDs showing full motion graphic displays from remote systems
  • PDP displays for information in public sites
  • LED signboards in streets and in stadiums

4. Ordering Information

DVI Fiber Optic Extender

FL3202M: 1-ch DVI, dual, single mode, 500Meter for MM mode or 1.5KM for single mode, MiNI type.

5.Specifications





  Parameter Specifications
Components Laser Diodes in Tx Module 1310nm/1550nm FP Laser
Photo Diodes in Rx Module InGaAs PIN-PD
Electrical Input and Output Signals TMDS Level (complying with DVI1.0)
Data Transfer Rate (Graphic Data) Max. 1.65Gbps
Total Jitter at the end of Rx output Max. 309 ps
Skew inter-channels Max. 6ns
Optical Link Power Budget Min 10.5dB
Mechanical Module dimension (mm) 42WX16HX69L
Connect Optical Connector 1 Duplex LC connectors
Electric Connector Type from Systems and to Displays 24 pin DVI-D plug
Recommended Fiber 50/125 um Multi-mode Glass Fiber for 500m; 9/125um single-mode fiber for 1500m.


Minitype 4 core fiber cable DVI  fiber optical transceiver
