SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet

China SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet supplier
SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet supplier SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet supplier SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet supplier

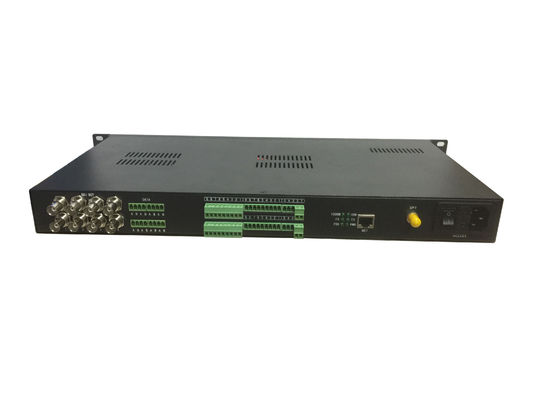

Large Image :  SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet

Product Details:

Place of Origin: China
Brand Name: Fiber Linker
Certification: CE FCC
Model Number: FL3004ADP

Payment & Shipping Terms:

Minimum Order Quantity: 1Pair
Packaging Details: Carton
Delivery Time: 7 working days
Payment Terms: TT in advance
Supply Ability: 300pairs per month
Contact Now
Detailed Product Description
Singal: HD-SDI Compatible: ASI, TS, SD-SDI
Quality: Broadcast Quality Solutoin: CWDM
Data: Support External Audio: Support
Cable: Single Core Fiber Optic Cable

1.  Overview
Fiber Linker’s HD-SDI Extender over Fiber, HD-SDI Fiber Optic Extenders offer the digital transmission of fully uncompressed SDI (270Mbps),HD-SDI (1.485Gbps) by single fiber overbroadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission.
2. Features
Our HD SDI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution
3.  Applications

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links

4. Ordering Information


FL3004ADP : 4-ch HD-SDI/ASI with embedded audio, 4-ch audio, 1-ch data, single fiber, single mode, FC, 20KM, 1U rack mount.

5. Specifications

HD SDI Input

HD SDI Output

channels

4

Channels

4

Signal standard

SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -1.485Gb/s)

Signal level

800mV nominal

Reflection loss

>15DB

Rise/drop time

200ps nominal

equalization

 1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable

Reflection loss

> 15dB

connector

75Ω BNC

Overshoot

10% amplitude

Jitter: < 0.2UI




Optic

Others

Channels

1

Transmission distance

20KM

Type

single mode

Operating temperature

-45°C~+50°C

Wavelength

1310nm /1550nm

Power

1A@12VDC

Reflection loss

> 15dB

Average time trouble-free

>100000 hours

Connector

FC/PC (SC/PC optional)

Case

1U rack mount

Audio

Data(optional)

Type

 RCA

Channels

2-ch data(terminal block)

Channels

4

Data rate

-+15 dBu



Input/output impedance

600Ω equilibrium

Connector

terminal block

Max. input/output level

+15 dBu





Frequency Response

20Hz-24KHz,±0.1dB


















Application:
SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet
