1-ch bidirectional HD SDI extender over fiber

China 1-ch bidirectional HD SDI extender over fiber supplier

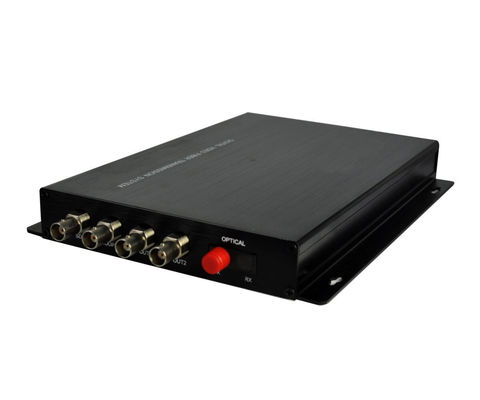

Large Image :  1-ch bidirectional HD SDI extender over fiber

Product Details:

Place of Origin: China
Brand Name: Fiber Linker
Model Number: FL3011

Payment & Shipping Terms:

Minimum Order Quantity: 1Pair
Delivery Time: 7 working days
Payment Terms: TT in advance
Contact Now
Detailed Product Description

1.  Overview

Fiber Linker’s HD-SDI Extender over Fiber, HD-SDI Fiber Optic Extenders offer the digital transmission of fully uncompressed SDI (270Mbps),HD-SDI (1.485Gbps) by single fiber overbroadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission.

2. Features

Our HD SDI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution

3. Specifications

HD SDI TX

HD SDI RX

channels

1-ch input, 1 loopout, 2-ch output

Channels

1-ch input,1 loopout, 2-ch output

Signal standard

SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -1.485Gb/s)

Signal level

800mV nominal

Reflection loss

>15DB

Rise/drop time

200ps nominal

equalization

1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable

Reflection loss

> 15dB

connector

75Ω BNC

Overshoot

10% amplitude

Jitter: < 0.2UI





Optic

Others

Channels

1

Transmission distance

20KM

Type

single mode (multimode optional)

Operating temperature

-45°C~+50°C

Wavelength

1310nm /1550nm

Power

1A@12VDC

Reflection loss

> 15dB

Average time trouble-free

>100000 hours

Connector

FC/PC (SC/PC optional)

Case

Stand alone( 1U rack mount optional)

4.  Applications

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links

5. Ordering Information

1-ch Bidirectional HD SDI extender over fiber

FL3011 : 1-ch bidirectional HD SDI,single fiber, FC, 20KM, stand alone.
