| Name: | SDI Fiber Optic Extender | Channels: | 16-ch SDI/ASI |
|---|---|---|---|
| Quality: | Broadcast | Ethernet: | 1000M |
| Fiber: | Single Core | Solution: | CWDM |
| ASI/TS: | Compatible |
1. Overview

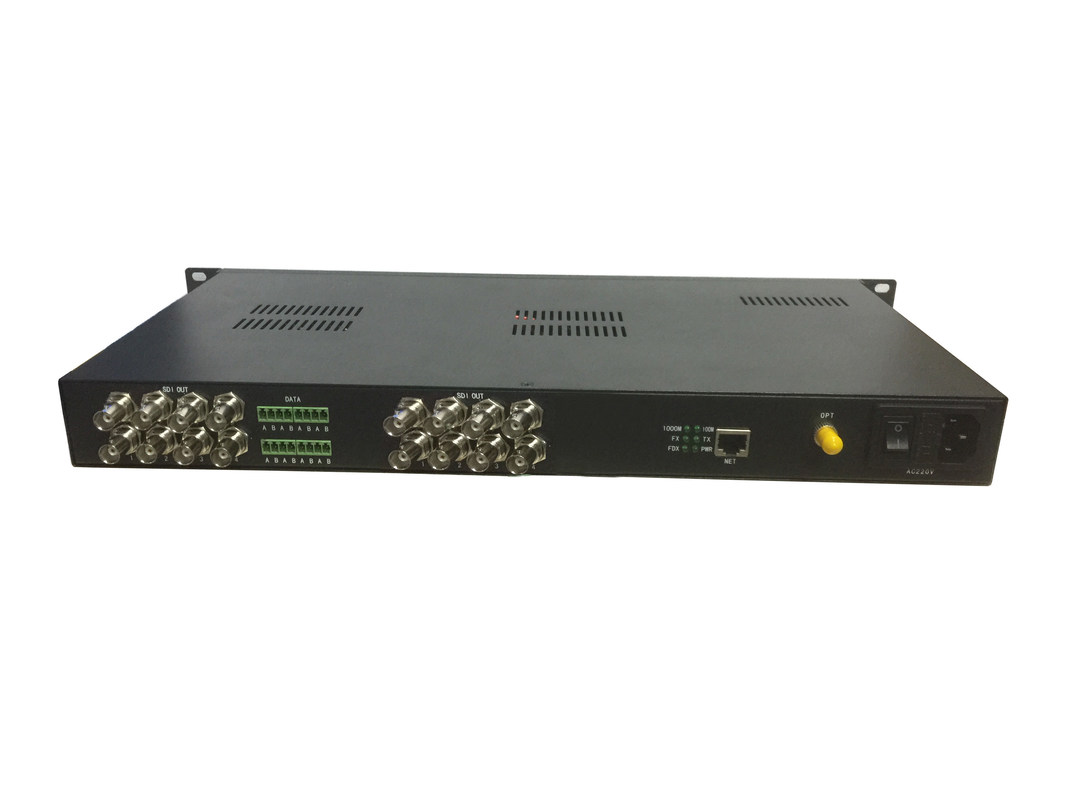

Fiber Linker’s HD-SDI Fiber Optic Extender offers the digital transmission of fully uncompressed SDI (270Mbps),HD-SDI (1.485Gbps) by single fiber over broadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission.Our 3G-SDI could also support ASI, TS stream and pass SDI pathological test.
2. Features
Our HD SDI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution
3. Applications
5. Specifications
|
3G SDI Input |
3G SDI Output |
||
|
channels |
16 |
Channels |
16 |
|
Signal standard |
SMPTE 424/425M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -1.485Gb/s) |
Signal level |
800mV nominal |
|
Reflection loss |
>15DB |
Rise/drop time |
200ps nominal |
|
equalization |
1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable |
Reflection loss |
> 15dB |
|
connector |
75Ω BNC |
Overshoot |
10% amplitude |
|
Jitter: < 0.2UI |
|||
|
Optic |
Others |
||
|
Channels |
1 |
Transmission distance |
20KM |
|
Type |
single mode (multimode optional) |
Operating temperature |
-45°C~+50°C |
|
Wavelength |
1310nm /1550nm |
Power |
1A@12VDC |
|
Reflection loss |
> 15dB |
Average time trouble-free |
>100000 hours |
|
Connector |
FC/PC (SC/PC optional) |
Case |
1U rack mount |
|
Audio(optional) |
Data(optional) |
||
|
Channels |
2-ch forward audio(terminal block) |
Channels |
1-ch reversed data(terminal block) |
|
Max.input/output level |
-+15 dBu
|
Data rate |
-+15 dBu
|
|
Frequency Response |
20Hz-24KHz,±0.1dB |
Connector |
terminal block |
|
SNR |
85dB(A weighted) |
|
|
|
Crosstalk |
< -90dB |
|
|
