Product Details:
Payment & Shipping Terms:
|
| Name: | SDI Matrix | Channels: | 16X16 |
|---|---|---|---|
| Quality: | Broadcast | Max Channels: | 172X172 |
| SDI: | 3G-SDI, HD-SDI, SD-SDI, ASI |
Introduction
SDI Video Matrix Switcher is a professional matrix switcher of high-performance embedded intelligent control. Our SDI is compatible with ASI which is used widely in broadcasting program transmission. It provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc
Feature
Technical Specifications
| Category | SDI Matrix Switcher |
| SDI Video | |
| Application standard | SMPTE424M,SMPTE295M,SMPTE292M,ITU-R BT.601,ITU-R BT.1120 |
| Video format | 270Mbps SDI,1.485Gbps HD-SDI & 2.97Gbps 3G-SDI |
| Data frequency | 19Mbps to 2.97Gbps |
| Range | 0.8Vp-p±10% |
| Rise/fall time | ＜270ps |
| DC excursion | 0v±0.5v |
| Overshoot | <10% |
| Shift | <540ps±10% |
| Min/max electricity frequency | 0.5V to 1.0Vp-p |
| Max transmission range | 3G: 120m. HD: 200m SD:400m(use 75-5,128 professional video line,or 75-5 closed circuit television line, far transmit distance and low cost |
| Input impedance | 75Ω |
| Return loss | <-15dB, DC@1MHz to 1.5 GHz |
| DC compensation | Max ±5mV |
| Output impedance | 75Ω |
| control interface | |
| Serial control interface | RS-232, 9-pin female D-type interface |
| Baud rate and protocol | Baud rate: 9600, data bit:8, stop bit: 1, no parity |
| IP | RJ45 port |
| Working Environment | |
| Power supply | 100VAC~240VAC, 50/60 Hz, international adaptive power |
| Temperature | Storage and operating temperature: -40°~ +70°C |
| Humidity | Storage and operating humidity: 10% ~ 90% |
| MTBF | 60,000 hours |
Ording Info

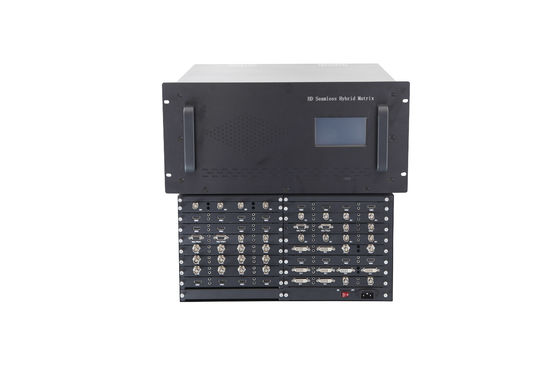

FL-SDI-1616: SDII Matrix Switcher supports 16 input and 16 output
