1.Overview

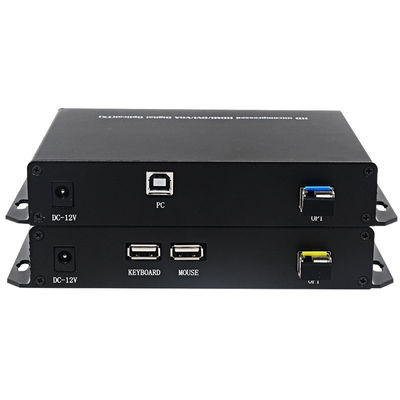

FL3301KVM VGA fiber extender digitally transmits1-ch high-resolution VGA video,1-ch VGA loopout in transmitter, 1-ch stereo audio, optional full duplex RS232, keyboard and mouse over one fiber, single-mode for 20KM. Point-to-point, point-to-multipoint and drop-and-repeat applications, it supports max 1920X1080@60Hz. It could save your fiber optic cable cost.
2.Features
1-ch VGA, 1-ch RS232, 1-ch forward stereo audio,1-ch USB for K&B
12-bit digital video encoding and uncompressed transmission technology
Sampling clock phase adjustment
Image contrast adjustment
Plug and play at any time, basically no need to be adjusted
3. Applications
Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
Long-haul Signal Transport
TV station/video conference
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Small corporate campus video links
Building to Building video conference calling
4. Ordering Information
VGA Fiber Optic Extender with KVM
FL3301KVM: 1-ch VGA, 1-ch stereo audio, 1-ch audio, 1 Keyboard and mouse, single fiber, single mode, up to 10KM, stand alone
5.Specifications
| Video | Optics | ||
| No. | 1-channel | Wavelength | 1310nm/1550nm |
| Video type | RGB with single and sync H,V | Fiber optic | Single-mode/core |
| Input level | 0.7Vp-p | Transmit optical power | －9.5～－3dBm, average power @1310nm |
| Output level | 0.7Vp-p | Max. link loss | 12dB(option) |
| Bandwidth (-3 dB) | 5G | Return loss | ≤10 dB |
| Bit width | 12bit | Transmission bit rate | 2.5G Hz |
| Resolution | max. 1920x1080@60Hz | Output optical power | 10dBm |
| Interface | HD-15 | Receiver sensitivity | －23dBm average power @13100nm |
| Data rate | 5G | ||
|
Connector |
LC |
||
| Audio(optional) | Power and environmental indication | ||
| No. | 1-ch forward stereo | Freestanding power | 5W |
| Input/ output level | 5Vp-p,unequilibrium | Dimension | 155*115*30mm |
| Connector | Standard 3.5 mm headphone jack | Power adapter | 220VAC to 12VDC/1A |
| RS232 (optional) | Operating temperature | -45°C to +50°C | |
| Input/output interface | terminal block | Storage temperature | -40℃~+80℃ |
| Signal rate | ≥115200bps | Relative humidity | < 95% (no condensation) |
| Signal level | RS232 standard level | Case | Stand alone |
