Product Introduction

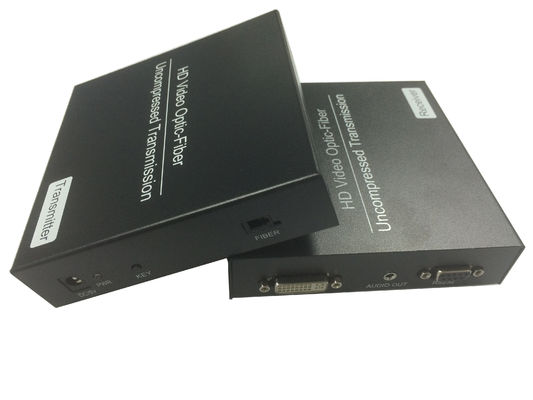

FL3202A is DVI fiber extender device of high-definition video transmission using fiber optic, just need a single fiber will be able to transmit 1080p DVI signal , audio, forward RS232 over long distance, it supports HDCP, EDID; This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Features
Long-distance transmission of DVI-D, audio, unidirectional RS-232 signals via a single optical fiber.
All-digital, uncompressed, high-definition optical fiber transmission.
HDCP Unvarnished Transmission, EDID Unvarnished Transmission
The sender supports DVI audio transmission and independent stereo transmission.
The receiver DVI can take the audio output and a separate stereo output.
Supports 1080p 60Hz, single-mode fiber transmission up to 10 km.
Real-time transmission of high-definition uncompressed DVI digital video signal, the video is clear and stable
Support for serial Unvarnished Transmission, baud rate can adapted by itself.
Built-in ESD protection circuitry, can effectively prevent electrostatic damage
Site installation: easy, plug and play, no need to set
Specification
|
Video |
|
|
type |
DVI |
|
input resolution |
DTV/HDTV; |
|
Input/output TDMS |
10Gpbs |
|
Input/output TDMS power level |
1.2volts p-p |
|
Input DDC level |
5volts p-p (TTL) |
|
Audio |
1-ch stereo audio |
|
Data |
1-ch unidirectional RS232 with same direction of video |
|
Power Supply |
|
|
Power Consumption |
|
|
Power Voltage |
5VDC |
|
Optic |
|
|
Optic Fiber |
Complied with 1000BASE_LX of IEEE802.3z |
|
Wavelength |
1310nm |
|
Output Optical Power |
－9.5～－3dBm,average @1310nm |
|
Receiver sensitivity |
－23dBm,average @1310nm |
|
Output Modulation Amplitude |
180μW |
|
Input Modulation Amplitude |
≤15μW |
|
Relative Speed |
-116 DB/Hz |
|
Return Loss |
≤10 dB |
|
Rate of transmission |
1G Hz～10G Hz |
|
Distance |
10KM, Max optional upto 60KM |
|
Environment |
|
|
Working Temperature |
|
|
Storage Temperature |
-65℃~+80℃ |
|
Relative Humidity |
0~95%(non condensing) |
|
Dimension |
|
|
Size |
136*130*30mm |
