1. Overview

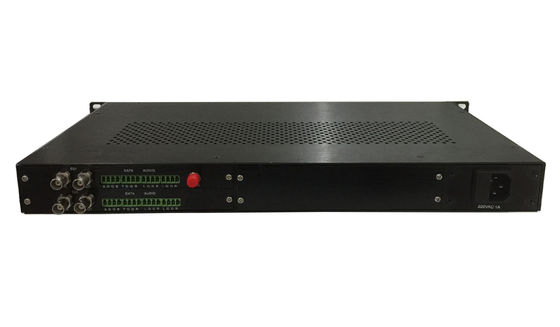

Fiber Linker’s SDI Extender over Fiber, HD-SDI Fiber Optic Extenders offer the digital transmission of fully uncompressed SDI (270Mbps),HD-SDI (1.485Gbps) by single fiber overbroadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission.
2. Features
This kind of product support 2-ch SDI, compatible with ASI, TS and embedded audio with local loop out in transmitter and receiver over single fiber cable. It also could support data and external audio over single fiber.
3. Specifications
|
HD SDI TX |
HD SDI RX |
||
|
channels |
2-ch input, 2 loopout |
Channels |
4-ch output |
|
Signal standard |
SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -1.485Gb/s) |
Signal level |
800mV nominal |
|
Reflection loss |
>15DB |
Rise/drop time |
200ps nominal |
|
equalization |
1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable |
Reflection loss |
> 15dB |
|
connector |
75Ω BNC |
Overshoot |
10% amplitude |
|
Jitter: < 0.2UI |
|||
|
Optic |
Others |
||
|
Channels |
1 |
Transmission distance |
20KM |
|
Type |
single mode (multimode optional) |
Operating temperature |
-45°C~+50°C |
|
Wavelength |
CWDM wave |
Power |
1A@12VDC |
|
Reflection loss |
> 15dB |
Average time trouble-free |
>100000 hours |
|
Connector |
FC/PC (ST/PC optional) |
Case |
1U rack mount |
4. Applications
