| Name: | 12G-SDI SMPTE Converter | Channel: | 8-ch 12G-SDI Forward, 4-ch 12G-SDI Reverse |
|---|---|---|---|
| Ethernet: | Support | Connector: | SMPTE311M, SMPTE304M, 3K.93C |
| Cable: | FUW-PUW | Power: | Could Power On From One Box To Another |
Specification

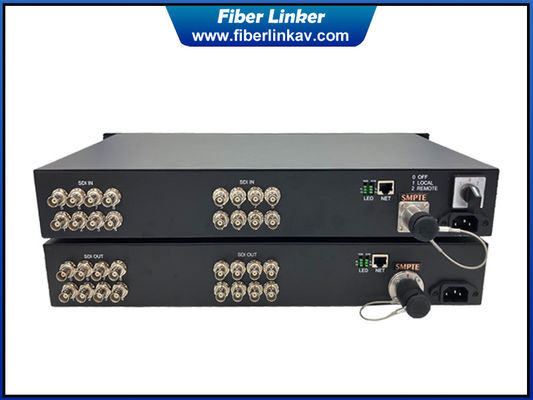

This multiple 12G-SDI Fiber Extender works with SMPTE304M/311M 3K.93C connector to transmit 8-ch forward 12G-SDI, 4-ch reverse 12G-SDI with Gigabit Ethernet. Using FUW-PUW HDTV hybird fiber cable could extend signal upto 2KM. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.
Feature
1. 8-ch forward 12G-SDI and 4-ch reverse 12G-SDI
2. Support 1-ch Gigabit Ethernet
3. Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
4. Bandwidth range from 270Mb/s to 11.88Gb/s
5. SMPTE ST 2082-1 (11.88Gb/s) clock recovery
6. SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
7. Support automatic cable equalization based on the data rate detected
8. LED status indicators monitor the critical parameters
9. SMPTE311/304M 3K.93C connector for fiber optic.
10. Suport one box to supply power to the other box
11. Support OEM configuration according to real requirement
12. Support CWDM or DWDM solution
Specifications
| SDI Input | Number | 8 input on TX box, 4 input on RX box |
| TV signal standard | SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259 | |
| Reflection loss | >4DB @12G | |
| Equilibrium | >50M @ 12Gb/s | |
| Connector | 75Ω BNC | |
| SDI Output | Number | 8 output on RX box, 4 output on TX box |
| Signal level | 800mV nominal | |
| Rise/fall time |
<135ps @3G-SDI ,<80ps @6G UHD-SDI <45ps @12G UHD-SDI |
|
| Overshoot | <10% amplitude | |
| Reflection loss | > 15dB | |
| Jitter | < 0.5UI | |
| Connector | 75Ω BNC | |
| Ethernet | RJ45 Connector | 1-ch 1000M bandwidth |
| Fiber Optic | Channel | 2 core inside |
| Type/Distance |
2KM over SMPTE Cable 10KM over Single-mode/pure fiber |
|
| Wavelength | CWDM 14 wavelength | |
| Connector | SMPTE LEMO | |
| Output Power | About +3 dB to -5dB | |
| Receiver sensitivity | -6dB for 10KM | |
| Power and Environmental | Operating temperature | -40℃～＋45℃ |
| Power Supply | 110 to 245VAC | |
| Power Consumption | About 12W | |
| EMI/RFI | FCC Part 15 Class A, EU EMC standard | |
| MTBF | >100000 hours | |
|
Other |
Size | 1.5U rack mount |
| Weight | 9Kg (TX+RX) |
