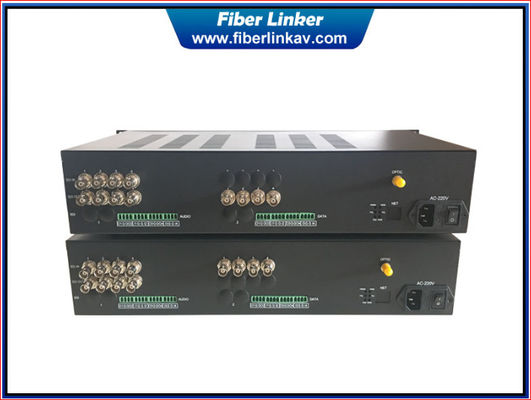

Multiple Two Way 3G-SDI Fiber Extender over single optic cable

• Product Item:FLS84AD

• Broadcast Quality Level

• Compatible with DVB-ASI

• Uncompressed CWDM Solution

• Overseas Large Integrator Application

• Category:3G-SDI Fiber Optic Extender

Description

This 3G-SDI Fiber Extender has 8-ch 3G-SDI forward and 4-ch 3G-SDI reverse with external analog audio and duplex data. The whole box function is transmitted by single core fiber optic cable with CWDM mux and demux inside. This rack mount also could add gigabit Ethernet on it. It is broadcasting quality level with uncompressed technology solution.

Features

1. 8-ch forward and 4-ch reverse 3G-SDI/ASI video with 2-ch RS422, 2-ch bidirectional analog audio

2. Compatible with HD-SDI, SD-SDI, DVB-ASI

3. Bandwidth range from 19.4Mb/s to 2.97Gb/s

4. SMPTE 424M (2.97Gb/s) clock recovery

5. support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively

6. Built-in CWDM system, SFP modules for each path

7. Support automatic cable equalization based on the data rate detected

8. LED status indicators monitor the critical parameters

9. We could make it as your requested specifications

Diagram
