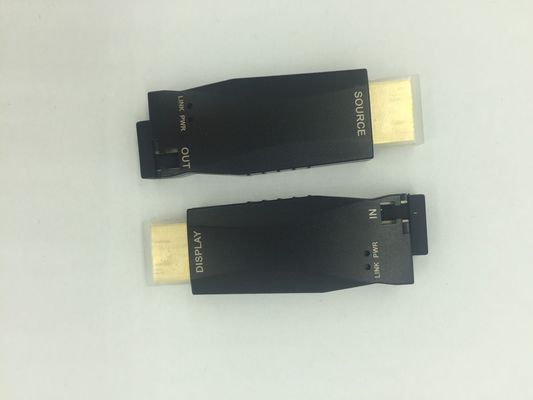

4K HDMI optic extender over single core fiber cable

INTRODUCTION

  4K resotuion HDMI to fiber optic extender supports transmission of an uncompressed lossless HDMI 1.4a . Signal over multimode or single mode optical fiber , up to distances at 300m,at a resolution of 4Kx2K. Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over single core optical fiber.  Receiver converts the serial data back to an HDMI signal .

FEATURES

• Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4);
• Support resolution 3840*2160/60Hz(Y:U:V 4:2:0)
• Extned the DVI data up to 300 meters over OM3 MMF or SMF Fiber;
• Support HDCP;
• Detachable feature with 1x LC OM3 MM Fiber or SM Fiber;
• The modules are compact enough to directly plug to graphic sources and displays by adopting HDMI plugs;
• Includes two (2) +5V DC power adapters for the transmitter and receiver ;
• Micro USB-B power connector;
• Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present ;

 2.0          SPECIFICATIONS

 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)     Main unit No.1 Transmitter

2)     Main unit No.2 Receiver

3)     Two pieces of USB lines

4)     User’s Manual
