DVI Fiber Extender (cost-effective non compressed)

China DVI Fiber Extender (cost-effective non compressed) supplier

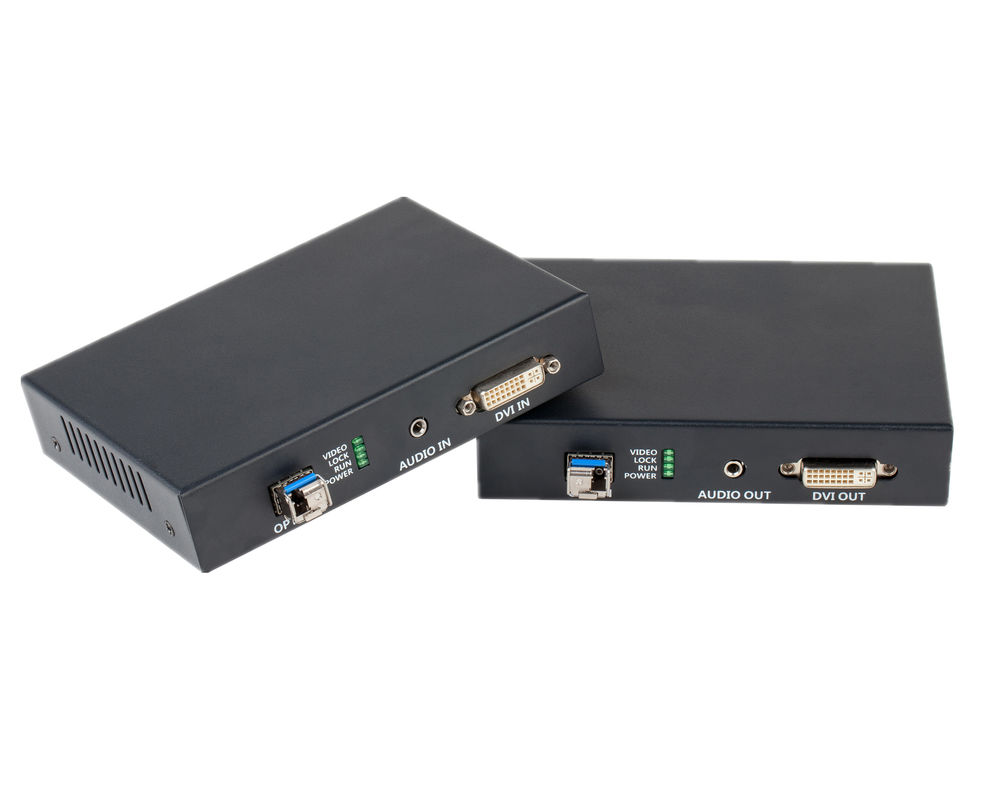

Large Image :  DVI Fiber Extender (cost-effective non compressed)

Product Details:

Place of Origin: China
Brand Name: Fiber Linker
Model Number: FL3202C

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Packaging Details: Carton
Delivery Time: 5day
Payment Terms: TT, Westen Union, Paypal
Supply Ability: 100pcs
Contact Now
Detailed Product Description

Product Introduction

FL3202C is DVI fiber extender device of high-definition video transmission using fiber optic, just need a single fiber will be able to transmit 1080p DVI signal , audio over long distance, it supports HDCP, EDID; This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Features

Long-distance transmission of DVI-D, audio,  via a single optical fiber.

All-digital, uncompressed, high-definition optical fiber transmission.

HDCP Unvarnished Transmission, EDID Unvarnished Transmission

The sender supports DVI audio transmission and independent stereo transmission.

The receiver DVI can take the audio output and a separate stereo output.

Supports 1080 and 720 resolution, single-mode fiber transmission up to 10km.

Real-time transmission of high-definition uncompressed DVI digital video signal, the video is clear and stable

Support for serial Unvarnished Transmission, baud rate can adapted by itself.

Built-in ESD protection circuitry, can effectively prevent electrostatic damage

Site installation: easy, plug and play, no need to set

Specification

Video



type

DVI-D( compatible with HDMI)

input resolution

1920*1080@60Hz  1920*1080@50Hz

1920*1080@30Hz  1920*1080@25Hz

1920*1080@24Hz

1080I@60Hz  1080I@50Hz

1280*720@60Hz    1280*720@50Hz

Input/output TDMS

10Gpbs

Input/output TDMS power level

1.2volts p-p

Input DDC level

5volts p-p (TTL)

Audio

 1-ch stereo audio

Data

no  support

Keyboard and mouse

no  support

Power Supply



Power Consumption

5W(max.)

Power Voltage

5VDC

Optic

Optic Fiber

Complied with 1000BASE_LX of IEEE802.3z

Wavelength

1310nm

Output Optical Power

-9.5~-3dBm,average @1310nm

Receiver sensitivity

-23dBm,average @1310nm

Output Modulation Amplitude

180μW

Input  Modulation Amplitude

≤15μW

Relative Speed

-116 DB/Hz

Return Loss

≤10 dB

Rate of transmission

1G Hz~10G Hz

Distance

10KM

Environment



Working Temperature

-45℃~+70℃

Storage Temperature

-65℃~+80℃

Relative Humidity

0~95%(non condensing)

Dimension



Size

136mm*130mm*30mm
