Broadcast digital AES/EBU Audio Fiber Optic Extender

China Broadcast digital AES/EBU Audio Fiber Optic Extender supplier
Broadcast digital AES/EBU Audio Fiber Optic Extender supplier Broadcast digital AES/EBU Audio Fiber Optic Extender supplier

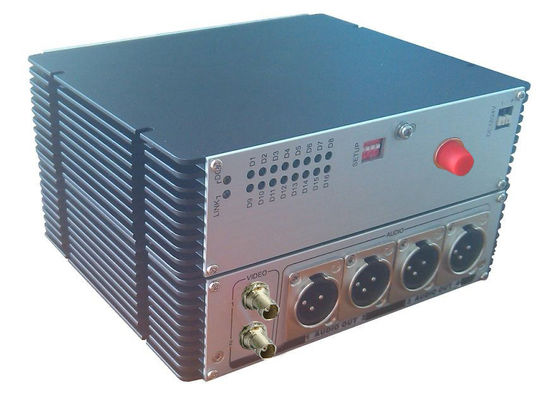

Large Image :  Broadcast digital AES/EBU Audio Fiber Optic Extender

Product Details:

Place of Origin: China
Brand Name: Fiber Linker
Model Number: FL8000

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: TT, Westen Union, Paypal
Supply Ability: 100 pairs per week
Contact Now
Detailed Product Description
Audio: AES/EBU Connector: XLR
Quality: Broadcast Level Fiber: Single Core
Channels: 1-16

1. Overview

FL8000 are designed for transmistting broadcast AES/EBU digital audio over fiber optic and could simultaneity transmit 1-16 channel broadcast-quality audio, the forward or the reserved over one fiber.

2. Features

Many different sampling frequency AES/EBU can be input ,  it is easy for transmitter and receiver connected with each other

1-16 channels of synchronous or asynchronous AES/EBU signal can be transmitted at the same time

Transmission distance up to 120 km without relay

All components, including connectors, are ordered from  public-known manufacturers in the world, high stability and reliability ensurance

Enclosure box material is made of aluminum, elegant appearance, light weight

PCB boards made with environment friendly Pb-free and RoHS Compliant

Convenient instructions of LED status indicator, audio activity, optical link, power supply etc

3. Specifications

Input

No. of channels

1 to 16

Input Electrical Level

0.2 to 7.0 Vp-p

Input sampling frequency

32KHz to 108KHz

Input impedance

110 ohm(balanced)

75 ohm(unbalanced)selectable

connector

XLR

BNC

Output

No. of channels

1~16

Output Electrical Level

5 Vp-p

Output sampling frequency

48 KHz

Jitter

<0.005UIP-P

Rising and falling time

<25ns

Output impedance

110ohm(balanced)

75 ohm unbalanced( selectable)

Connector

XLR

BNC

Fiber optic

Wavelength

1310 nm(1550 nm optional for CWDM)

Transmitting  power

-10dBm±2 dBm  (optional 0±3dBm)

Receiving power

-32dBm~-3 dBm

Distance

0~20 Km  (max 120KM)

Connector

FC/ PC  (FC/APC,SC/PC,SC/APC optional)

Power  Supply

AC85V~AC265V    <20W

Dimension

44×433×340(mm)

4. Applications

Radio Station AES/EBU Signal Transmission
ENG/EFP Serial Digital Audio Transmission
Tape Deck to Digital Audio Tape Transmission
Pre-production and Post-production Serial Digital Audio Links

5. Ordering Information

1-16  Broadcast digital AES/EBU Audio Fiber Optic Extender

FL8000-T

1-16 channel AES/EBU digital audio input, single fiber, single mode, FC/PC fiber connector, XLR audio interface  1U rack mount, standard 20km (0-120km optional)

FL8000-R

1-16 channel AES/EBU digital audio output, single fiber, single mode, FC/PC fiber connector, XLR audio interface  1U rack mount, standard 20km (0-120km optional)
